Actual Product May Vary From Image

SY7400-5U1 SMC

Name: SY7400-5U1 SMC
Brand: SMC
SKU: SY7400-5U1 SMC
Price: 95.65 USD
Availability: InStock

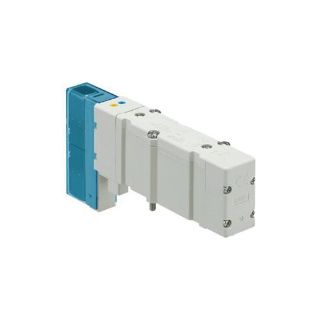

SMC® SY7400-5U1 SY7000 5-Port Solenoid Valve, 0.2 to 0.7 MPa Pressure, 1.4 Cv Flow Rate, Die Cast Aluminum Body

Manufacturer: SMC

Manufacturer part number: SY7400-5U1

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
7	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$95.65

Qty:

Product Details

Brand Name

SMC®

Type

5-Port

Description

SMC®, SY7400-5U1, Solenoid Valve, 5-Port, Series: SY7000, 0.2 to 0.7 MPa Pressure, -10 to 50 deg C, 1.4 Cv Flow Rate, Media: Air, 3-Position Actuator, Die Cast Aluminum Body, H-NBR Softgoods, White

Standards

RoHS Compliant | IP67

Features

Operating fluid, air
Operating pressure range, -100 kPa to 0.7
Ambient and fluid temperature deg C, -10 to 50 (No freezing)
Coil rated voltage DC 24, 12 V (Based on IEC60529)

Specifications

Actuator Type:	3-Position
Body Material:	Die Cast Aluminum
Color:	White
Country of Origin:	US
Flow Rate:	1.4 Cv
Media:	Air
Pressure Rating:	0.2 to 0.7 MPa
Series:	SY7000
Softgoods Material:	H-NBR
Temperature Rating:	-10 to 50 deg C
