SYJ7120-5LOU-01F SMC

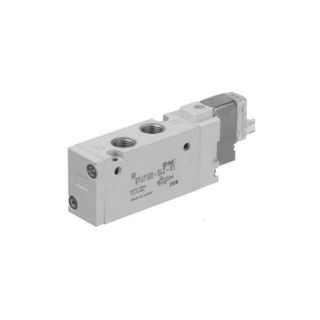

Picture of SYJ7120-5LOU-01F SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
SYJ7120-5LOU-01F
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$56.40 / EA

Description

Brand Name

SMC®

Type

5-Port

Description

SMC®, SYJ7120-5LOU-01F, Solenoid Valve, 5-Port, Series: SYJ7000, BSPP End Style, 0.1 to 0.7 MPa Pressure, -10 to 50 deg C, 0.74 Cv Flow Rate, Media: Air, 2-Position Actuator, Die Cast Aluminum Body, H-NBR Softgoods, White, 31.5 mm H x 18 mm W x 91.9 mm L Dimensions

Standards

RoHS Compliant

Features

  • Fluid, air Operating pressure range from 0.1 - 0.7MPa
  • Cv factor, body ported range 0.48 - 0.6;base mounted 0.7
  • Coil rated voltage 3, 5, 6, 12, 24VDC;100, 110, 200, 220VAC
  • Ambient and fluid temp, max. 50 deg C

Specifications

Actuator Type:2-Position
Body Material:Die Cast Aluminum
Color:White
Country of Origin:JP
Dimensions:31.5 mm H x 18 mm W x 91.9 mm L
End Style:BSPP
Flow Rate:0.74 Cv
Media:Air
Pressure Rating:0.1 to 0.7 MPa
Series:SYJ7000
Softgoods Material:H-NBR
Temperature Rating:-10 to 50 deg C
