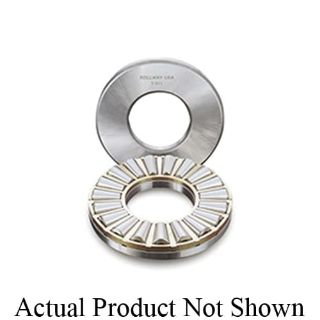

T-511 RLW

Rollway® tapered thrust bearings utilize crowned tapered rolling elements separated by a machined brass roller riding retainer (cage) contained within precision ground shaft and housing plates. Inherent to the design, the self centering action of the tapered rollers provide true rolling motion. These attributes counteract the natural gravitational forces on the roller assembly when subjected to horizontal applications. Tapered thrust bearings are intended for high axial loads (load parallel to the axis of rotation). There are 3 types of tapered thrust bearings available TTHD, TTVF and self aligning TTVF.

Rollway® Tapered Roller Thrust Bearing, Heavy Duty, 5 in Bore Dia, 10-1/2 in Outside Dia, 2.313 in Width, 322500 lb Dynamic/1232570 lb Static Load, Case Carburized Steel Bearing, 860 rpm Oil Maximum
