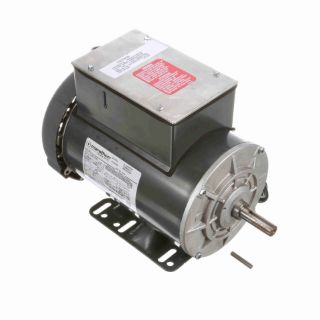

T018 MAR

Name: T018 MAR
Brand: Marathon Electric Motors
SKU: T018 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

T018

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056B17F5328

Features

Capacitor start/capacitor run design for reduced amperage Double sealed ball bearings Heavy gauge steel frame and base Manual reset thermal protector Dependable, dust-proof centrifugal starting switch On/off toggle switch and 8 foot cord with 115 volt plug included on 1/2 to 1-1/2 HP models

Specifications

Assembly/Box Mounting:	F3
C Dim (IN):	13.73
CE:	N
Connection Drawing Number:	102006-60
Country of Origin:	Mexico
CSA:	Y
Current:	13.6/7.5-6.8
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	81.5
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	H
Frame Type:	56H
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	1.50
Insulation Class:	B
IP Code:	43
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	A-104267-856
Phases:	1
Power Factor:	87
Power Rating (HP):	1.50
Power Rating (kW):	1.1
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	1.88
Shaft Type:	Single Special Extension
Speed:	1725
Speed Max:	1725
Starting Type:	Across The Line
Type of Overload Protector:	Manual
UL:	Recognized ( Not Protector)
Voltage:	115/208-230
