Actual Product May Vary From Image

T10-2250-25 GAT

Name: T10-2250-25 GAT
Brand: Gates
SKU: T10-2250-25 GAT
Price: 137.32 USD
Availability: OutOfStock

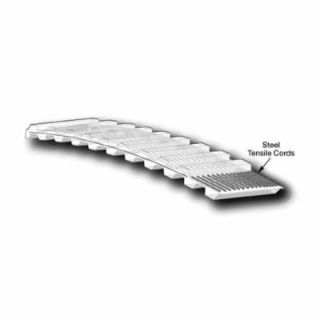

Synchro-Power™ Sleeves

Manufacturer: Gates

Manufacturer part number: T10-2250-25

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$137.32

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

77622328

Description

Gates Synchro-Power™ polyurethane belts are designed for long-lasting and energy-efficient performance on both power transmission and linear applications. They are available in both endless and open-end versions in various sizes, constructions and tooth designs, handling a wide range of loads, speeds and applications.

Features

Abrasion-resistant polyurethane body offers clean running systems without accumulation of debris. Synchro-Power endless belts and sleeves for power transmission are manufactured as truly endless synchronous belts with no joint. Pitch lengths available up to 2250 mm. Synchro-Power open-end belts for linear drives (rolls) are manufactured as open-end extruded belts. Roll lengths available up to 100 m. Modifcations include molded profiles, tensile cords, lamination with various backings, and FDA and USDA constructions. Exceptional rigidity, reduced tooth flexing and exceptional stability in the overall system with no lubrication required.

Specifications

Belt Back Side:	Smooth
Belt/Slab:	Belt
Color:	Blue
Cord Material:	Steel
Country of Origin:	US
End:	Endless
GC Base Product:	Synchro-Power® Polyurethane Belts - T10 Pitch
Harmonized Tariff Code:	3926.90.6010
Length Pitch (in):	88.583
Length Pitch (mm):	2250
Material:	Polyurethane
Max Temp (°C):	+80
Max Temp (°F):	+176
Min Temp (°C):	-30
Min Temp (°F):	-22
Number of Teeth:	225
Pitch (in):	0.394
Pitch (mm):	10
Proposition 65:	NO
Section:	T10
Sided:	Single Sided
Standard Width:	YES
Stat Conductive:	No
Tooth Form:	T Design
Width (in):	0.984
Width (mm):	25
