T111684 ACM

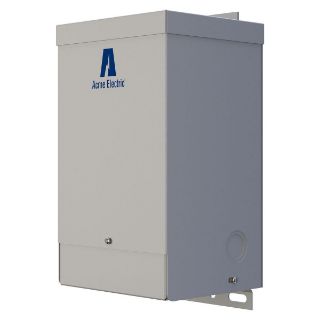

Picture of T111684 ACM
Actual Product May Vary From Image

Product Details

Manufacturer:
Acme Electric
Manufacturer part number:
T111684
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$502.56 / EA

Description

Brand Name

Acme Electric®

Type

Encapsulated

Description

Acme Electric® Buck Boost Transformer, Encapsulated, 120/240 VAC Primary, 12/24 VDC Secondary, 15.1 kVA, 60 Hz, 1 ph, 125 A at 12 V/62.5 A at 24 V Output Maximum, Wire Lead/Screw, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 5.13 in L x 5.5 in W x 11.62 in H

Application

For low voltage lighting or control circuitry applications

Standards

UL 506 File No. E79947V1 | UL Control Number 50B8 | UL Insulation Number X3221 | CSA Certified | OSHA Compliant | ANSI Specified | IEEE Certified | PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Features

  • Encapsulated core and coil
  • Buck boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20%
  • The most common example is boosting 208 to 230 VAC, usually to operate a 230 VAC motor such as an air conditioner compressor, from a 208 VAC supply line
  • Buck boost transformers are an economical way to correct a potentially very serious problem
  • Anytime a line voltage change in the 5 to 20% range is required, a buck boost transformer should be considered as your first line-of defense
  • Lower cost solution
  • 1 or 3-phase applications
  • Boost voltage 15.1 kVA/62.5 A 220 VAC line and 242 VAC load
  • Buck voltage 30.6 kVA/132 A 252 VAC line and 240 VAC load
  • Easily configured for numerous applications
  • 5 to 10 times increase in kVA

Specifications

Connection Type:Wire Lead/Screw
Country of Origin:MX
Dimensions:5.13 in L x 5.5 in W x 11.62 in H
Enclosure Type:NEMA 3R
Frequency Rating:60 Hz
Housing Material:Steel
Insulation:Class H/180 deg C
Maximum Amperage Rating:125 A at 12 V/62.5 A at 24 V Output
Mounting Type:Wall
Phase:1 ph
Power Rating:15.1 kVA
Primary Voltage:120/240 VAC
Secondary Voltage:12/24 VDC
Temperature Rating:115 deg C
