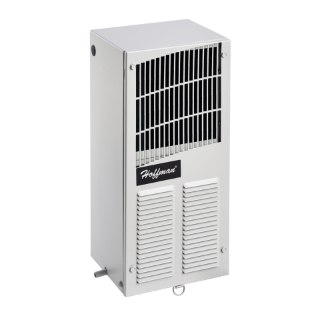

T150116G120 HOF

AC SM SIDE MTG 115V 60HZ
Manufacturer: nVent HOFFMAN
Manufacturer part number: T150116G120
Availability: Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$3,586.00

Product Details

Brand Name

nVent HOFFMAN

Type

Air Conditioners

Description

T-Series Compact Outdoor T15, 800BTU 115V, Lt Gray, Steel

Application

Power Distribution; Controls and Drives

Specifications

Amperage Rating:3.6/3.8 A
BTU Rating:800
Color:Light Gray
Color Code:RAL 7035
Country of Origin:US
Depth (Imperial):6.3 in
Depth (Metric):160 mm
Finish:Powder Coated
Frequency Rating:50/60 Hz
Height (Imperial):15.75 in
Height (Metric):400 mm
Material:Mild Steel
Max Current:3.5 A
NEMA Rating:12 Indoor, dust-resistant
Nominal Capacity Btu/h:800 Btu/h
Nominal Capacity Watts:235 W
Nominal Voltage:115 V
Number of Phases:1
Operating Temperature:-40-131
Phase:1
Product Family:T-Series
Protection Rating:NEMA Type 12
Remote Access Control:No
Sub Brand:T-Series
Thickness (Imperial):18 ga
Thickness (Metric):1.21 mm
Voltage AC:100-120 V
Voltage Rating:110/115 V
Weight (Imperial):27 lb
Weight (Metric):12 kg
Width (Imperial):7.5 in
Width (Metric):191 mm
