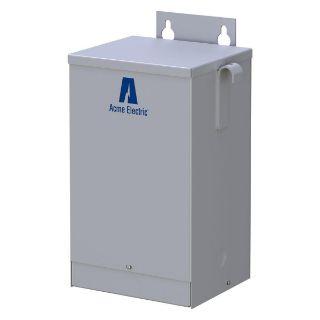

T153931 ACM

Some specifications require installation of large control transformers, usually 1000 to 5000 VA outside the control cabinet. This means the transformer must be in a sheet metal enclosure instead of the usual open core and coil construction method. Acme Electric® meets this need by providing all of the power, protection, regulation and performance of our standard industrial control transformers in one UL-3R enclosure. These transformers are wound with copper magnet wire, deliver full nameplate capacity, and provide the high regulation required in control applications.

Acme Electric® Industrial Control Transformer, Encapsulated Open Core and Coil, Series: T1 Series, 240/480/600 VAC Primary, 100/120 VAC Secondary, 5 kVA, 50/60 Hz, 1 ph, 41.67 A Output Maximum, Wire Lead, Wall Mount, Class F/155 deg C, NEMA 3R, 55 deg C, Steel Housing, 10.19 in L x 13.25 in W x 13.85 in H
