T181057 ACM

Name: T181057 ACM
Brand: Acme Electric
SKU: T181057 ACM
Price: 216.46 USD
Availability: OutOfStock

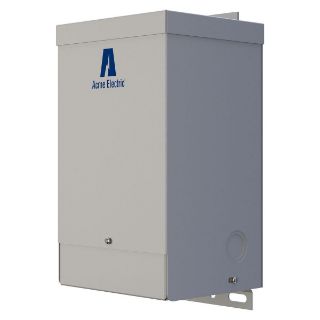

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

T181057

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$216.46 / EA

Description

Brand Name

Acme Electric®

Type

Isolation

Alternate Supplier #

Grainger - 4LEH3

Description

Acme Electric® Buck Boost Transformer, Isolation, 120/240 VAC Primary, 16/32 VDC Secondary, 3.75 kVA, 50/60 Hz, 1 ph, 15.60 A at 16 V/7.8 A at 32 V Output Maximum, Wire Lead/Screw, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 3.88 in L x 4.08 in W x 8.68 in H

Application

For low voltage lighting or control circuitry applications

Standards

Features

Encapsulated core and coil
Buck boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 to 20%
The most common example is boosting 208 to 230 VAC, usually to operate a 230 VAC motor such as an air conditioner compressor, from a 208 VAC supply line
Buck boost transformers are an economical way to correct a potentially very serious problem
Anytime a line voltage change in the 5 to 20% range is required, a buck boost transformer should be considered as your first line-of defense
15.6 A at 16 VAC, 7.8 A at 32 VAC power rating

Specifications

Connection Type:	Wire Lead/Screw
Country of Origin:	MX
Dimensions:	3.88 in L x 4.08 in W x 8.68 in H
Enclosure Type:	NEMA 3R
Frequency Rating:	50/60 Hz
Housing Material:	Steel
Insulation:	Class H/180 deg C
Maximum Amperage Rating:	15.60 A at 16 V/7.8 A at 32 V Output
Mounting Type:	Wall
Phase:	1 ph
Power Rating:	3.75 kVA
Primary Voltage:	120/240 VAC
Secondary Voltage:	16/32 VDC
Temperature Rating:	115 deg C
