T218241 FER

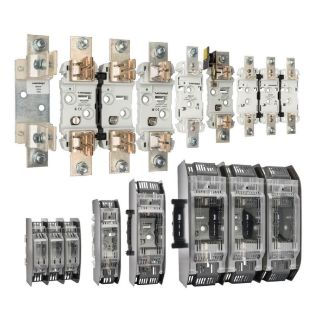

NH fuse bases are available for delivery in single pole and three-pole designs and can be closely mounted in parallel rows. Each three-pole base is supplied with two phase-partition walls. NH fuse links plug-on covers which clip onto the contact springs can also be supplied for these bases. Plastic fuse bases sizes 00 to 3 have a single-part plastic base while size 4 has a metal baseplate with 2 ceramic bases. The stable silver plated contact springs are made of electrolytic copper and formed from one piece. Separate springing is provided by highly resilient captive steel springs, making the contact invulnerable to high thermal stress. Size 4 NH fuse bases are designed for size 4 fuse links with 8 mm contact blades. A microswitch (250VAC/10A, terminal size 6.3x0.8mm) can be used with NH fuse links with striker, it operates when fuse melts or where there is no fuse link. Indirect touch protection fuse bases: no microswitch possible. Rated impulse withstand voltage Uimp: 6kV / 8kV (sizes 00 / 0-4).

Mersen Fuse Base, Type PP Insulated, For Use With: NH Series 690 VAC/440 VDC, 160 A, Fuse Link, 1-Pole, Size 0, DIN Rail Mount, Clip Contact, Polyamide, 185 mm H x 46 mm W x 95 mm D
