T253007SS ACM

Name: T253007SS ACM
Brand: Acme Electric
SKU: T253007SS ACM
Availability: OutOfStock

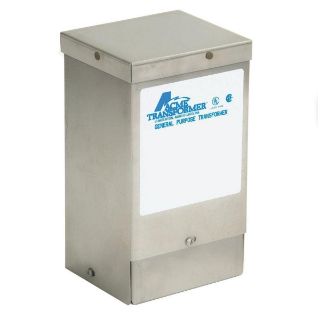

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

T253007SS

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Acme Electric®

Type

Dry Type Encapsulated Isolation Low Voltage

Description

Acme Electric® Distribution Transformer, Dry Type Encapsulated Isolation Low Voltage, Series: T Series, 240 x 480 VAC Primary, 120/240 VAC Secondary, 250 VA Power, 50/60 Hz Frequency, 1 ph, Copper Wire Leads Connection, Wall Mounting, Class F/155 deg C Insulation, NEMA 3R Enclosure, 115 deg C, 316 Stainless Steel Housing Material, 3.88 in L x 4.08 in W x 8.68 in H Dimensions

Application

For harsh industrial locations, corrosive chemical exposure, waste water treatment facilities, coastal or marine applications with high salt mist and any application where painted cold roll steel is not adequate

Standards

CSA C22.2 No. 47 | UL 506 | ANSI Specified | CSA Certified | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

UL listed, CSA certified and UL-3R enclosures meets or exceeds all listing criteria including NEMA, ANSI and OSHA standards
Shielded for cleaner power
Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air
UL type 3R enclosure for indoor or outdoor service
Encapsulation eliminates corrosion and insulation deterioration
Quiet operation with sound levels well below NEMA standards
Electrostatic shield for enhanced protection

Specifications

Connection Type:	Copper Wire Leads
Country of Origin:	MX
Dimensions:	3.88 in L x 4.08 in W x 8.68 in H
Enclosure Type:	NEMA 3R
Frequency Rating:	50/60 Hz
Housing Material:	316 Stainless Steel
Insulation:	Class F/155 deg C
Mounting Type:	Wall
Phase:	1
Power Rating:	250 VA
Primary Voltage:	240 x 480 VAC
Secondary Voltage:	120/240 VAC
Series:	T Series
Temperature Rating:	115 deg C
