T2530144S ACM

Name: T2530144S ACM
Brand: Acme Electric
SKU: T2530144S ACM
Price: 868.00 USD
Availability: OutOfStock

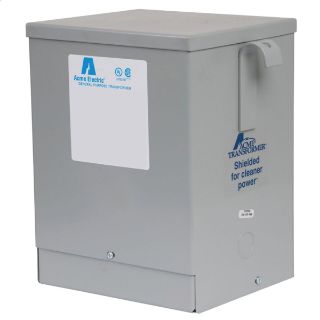

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

T2530144S

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$868.00 / EA

Description

Brand Name

Acme Electric®

Type

4-Winding Air Colled/Dry

Alternate Supplier #

Grainger - 208G86

Description

Acme Electric® Distribution Transformer, 4-Winding Air Colled/Dry, 240/480 VAC Primary, 120/240 VAC Secondary, 5 kVA, 60 Hz, 1 ph, 4 Taps, Copper Lead Wire Screw Terminal, Wall Mount, 180 deg C Class H, NEMA 3R, 115 deg C, Steel Housing, 7.13 in L x 10.31 in W x 14.38 in H

Application

Indoor/Outdoor Applications

Standards

Features

Quite operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection
Encapsulated core and coil
Shielded for cleaner power
Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air
UL type 3R enclosure for indoor or outdoor service, encapsulation eliminates corrosion and insulation deterioration
Air cooled/dry cooling
Four windings
Aluminum, two primary winding, two winding secondary

Specifications

Connection Type:	Copper Lead Wire Screw Terminal
Country of Origin:	MX
Dimensions:	7.13 in L x 10.31 in W x 14.38 in H
Enclosure Type:	NEMA 3R
Frequency Rating:	60 Hz
Housing Material:	Steel
Insulation:	180 deg C Class H
Mounting Type:	Wall
Number of Taps:	4
Phase:	1 ph
Power Rating:	5 kVA
Primary Voltage:	240/480 VAC
Secondary Voltage:	120/240 VAC
Temperature Rating:	115 deg C
