T2A527151 ACM

Name: T2A527151 ACM
Brand: Acme Electric
SKU: T2A527151 ACM
Price: 5,835.42 USD
Availability: OutOfStock

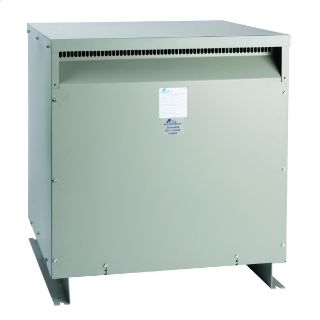

Acme Electric® T2A527151 Dry Distribution Low Voltage Ventilated Isolation Transformer, 600/480 VAC Primary, 480/380 VAC Secondary, 225 kVA Power Rating, 50/60 Hz, 3 ph Phase

Manufacturer: Acme Electric

Manufacturer part number: T2A527151

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$5,835.42

Qty:

Product Details

Brand Name

Acme Electric®

Type

Dry Distribution Low Voltage Ventilated

Description

Acme Electric® Isolation Transformer, Dry Distribution Low Voltage Ventilated, 600/480 VAC Primary, 480/380 VAC Secondary, 225 kVA, 50/60 Hz, 3 ph, 2 Taps, Aluminum Bus, Floor Mount, NEMA 1, 150 deg C, Stainless Steel Housing, 22.37 in L x 28.15 in W x 29.41 in H

Standards

CE Marked | UL 1561 File No. E12547 | PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Features

Fully encapsulated core and coil
UL type 3R epoxy encapsulated
Ground studs for use with non-metallic conduit
Aluminum bus termination
Quite operation with sound levels below NEMA standards
5% taps steps
2 BNFC taps
WSA2 weather shield

Specifications

Connection Type:	Aluminum Bus
Country of Origin:	MX
Dimensions:	22.37 in L x 28.15 in W x 29.41 in H
Enclosure Type:	NEMA 1
Frequency Rating:	50/60 Hz
Housing Material:	Stainless Steel
Mounting Type:	Floor
Number of Taps:	2
Phase:	3 ph
Power Rating:	225 kVA
Primary Voltage:	600/480 VAC
Secondary Voltage:	480/380 VAC
Temperature Rating:	150 deg C
