T2A795533S ACM

Name: T2A795533S ACM
Brand: Acme Electric
SKU: T2A795533S ACM
Availability: OutOfStock

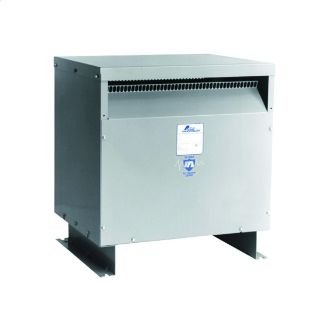

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

T2A795533S

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Acme Electric®

Type

Dry Type Isolation Low Voltage Ventilated

Description

Acme Electric® Distribution Transformer, Dry Type Isolation Low Voltage Ventilated, Series: T Series, 380D VAC Primary, 220Y/127 VAC Secondary, 45 kVA, 50 Hz, 3 ph, 6 Taps, Lugs/Bolt Down Terminals, Floor Mount, Class R/220 deg C, NEMA 2, 150 deg C, Steel Housing, 22.37 in L x 28.15 in W x 29.41 in H

Application

For harsh industrial locations, corrosive chemical exposure, waste water treatment facilities, coastal or marine applications with high salt mist and any application where painted cold roll steel is not adequate

Standards

CSA C22.2 No. 47 | UL 506 | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

With weather shield, UL type 3R enclosure or type 2 enclosure without weather shield
Extra large wiring compartment for easier installation and cooler case temperatures
NEMA standard bus bar terminals, no special tools needed to make clearly marked connections tap changing easily accomplished with jumpers
Aluminum windings for increased insulation life, cooler operation, lower losses
Noise and vibration isolating pads standard to assure quiet operation
Large permanently legible nameplates on front
Single phase units can be banked for 3-phase service
All units have ground studs for use with non-metallic conduit
Suitable for wall or trapeze mounting wall brackets are available for units up to 50 kVA single and 75 kVA 3-phase
Quiet operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection

Specifications

Connection Type:	Lugs/Bolt Down Terminals
Country of Origin:	MX
Dimensions:	22.37 in L x 28.15 in W x 29.41 in H
Enclosure Type:	NEMA 2
Frequency Rating:	50 Hz
Housing Material:	Steel
Insulation:	Class R/220 deg C
Mounting Type:	Floor
Number of Taps:	6
Phase:	3 ph
Power Rating:	45 kVA
Primary Voltage:	380D VAC
Secondary Voltage:	220Y/127 VAC
Series:	T Series
Temperature Rating:	150 deg C
