T430826G100 HOF

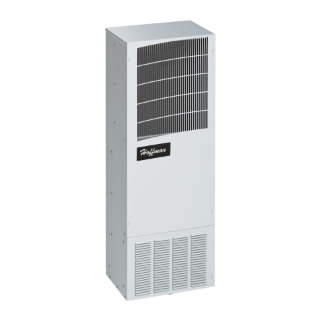

Picture of T430826G100 HOF

Actual Product May Vary From Image

Product Details

Manufacturer:

Manufacturer part number:

T430826G100

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Expected Leadtime 20 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Type

Air Conditioners

Description

T-Series Mid-Size Outdoor without Heat T43, 8000BTU 230V, Lt Gray, Steel

Application

Power Distribution; Controls and Drives

Specifications

Amperage Rating:	5.4 A
BTU Rating:	8,200
Color:	Light Gray
Color Code:	RAL 7035
Country of Origin:	US
Depth (Imperial):	10.9 in
Depth (Metric):	277 mm
Finish:	Powder Coated
Frequency Rating:	50/60 Hz
Harmonized Code:	8415820105
Height (Imperial):	43 in
Height (Metric):	1,092 mm
Housing Material:	Mild Steel
Material:	Mild Steel
Max Current:	5.4 A
Model:	T43
NEMA Rating:	4 Watertight
Nominal Capacity Btu/h:	8,200 Btu/h
Nominal Capacity Watts:	2,403 W
Nominal Voltage:	230 V
Number of Phases:	1
Operating Temperature:	-40-131
Phase:	1 Ph
Power:	2400 W
Product Family:	T-Series
Protection Rating:	NEMA Type 4
Remote Access Control:	No
Thickness (Imperial):	18 ga
Thickness (Metric):	1.21 mm
Voltage AC:	200-250 V
Voltage Rating:	230
Weight (Imperial):	131 lb
Weight (Metric):	57 kg
Width (Imperial):	15.75 in
Width (Metric):	400 mm
