T501246G400 HOF

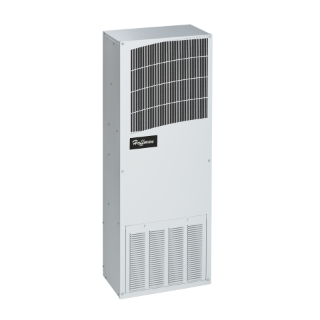

Picture of T501246G400 HOF

Actual Product May Vary From Image

Product Details

Manufacturer:

Manufacturer part number:

T501246G400

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Type

Air Conditioners

Description

T-Series Mid-Size Outdoor without Heat T50, 12000BTU 460V, Lt Gray, Steel

Application

Power Distribution; Controls and Drives

Specifications

Amperage Rating:	5.0/6.0 A
BTU Rating:	12,407
Color:	Light Gray
Color Code:	RAL 7035
Country of Origin:	US
Depth (Imperial):	11.05 in
Depth (Metric):	281 mm
Finish:	Powder Coated
Frequency Rating:	50/60 Hz
Harmonized Code:	8415820105
Height (Imperial):	50 in
Height (Metric):	1,270 mm
Material:	Mild Steel
Max Current:	6 A
Model:	T50
NEMA Rating:	4 Watertight
Nominal Capacity Btu/h:	12,407 Btu/h
Nominal Capacity Watts:	3,636 W
Nominal Voltage:	230 V
Number of Phases:	1
Operating Temperature:	-40-131
Power:	2043/2465 W
Product Family:	T-Series
Protection Rating:	NEMA Type 4
Remote Access Control:	No
Thickness (Imperial):	18 ga
Thickness (Metric):	1.21 mm
Voltage AC:	200-250 V
Weight (Imperial):	210 lb
Weight (Metric):	75 kg
Width (Imperial):	19 in
Width (Metric):	483 mm
