TA281220 ACM

Name: TA281220 ACM
Brand: Acme Electric
SKU: TA281220 ACM
Availability: OutOfStock

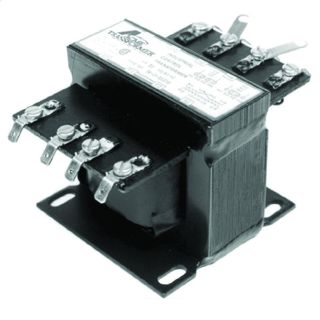

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

TA281220

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Acme Electric®

Type

Industrial

Description

Industrial control transformers are used to reduce supply voltages to 230 V or lower for the operation of electromagnetic devices such as contactors, solenoids, relays, and timers. They are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.

Acme Electric® Control Transformer, Industrial, Series: TA Series, 240/480, 230/460, 220/440 VAC Primary, 110/115/120 VAC Secondary, 3000 VA Power, 50/60 Hz Frequency, 1 ph, 25 A Maximum, Lead Wire/Screw Connection, Panel Mounting, Class B/130 deg C Insulation, Open Enclosure, 80 deg C, Silicon Steel Housing Material, 7.5 in L x 8.81 in W x 8.34 in H Dimensions

Application

For motor starters, contactors, solenoids and timers or other loads applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | OSHA Compliant | UL 506 | 50B8 | B3223 | E79947V1 | CSA 7357 | IEEE Certified | ANSI Specified

Features

Constructed out of electrical lamination with precision wound coils
Primary and secondary fuse kits easily adaptable
Series-parallel connecting links save wiring and labor costs
Mounting plate adapts to various mounting dimensions
Optional secondary fuse kits available
Open core and coil
Acme industrial control transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety
Designs incorporate precision wound coils for improved regulation
Sturdy phenolic terminal panel protects the coil from foreign objects and mechanical damage
Copper windings on all groups
240 x 480, 230 x 460, 220 x 440 VAC primary volt
110/115/120 VAC secondary volt

Specifications

Connection Type:	Lead Wire/Screw
Country of Origin:	MX
Dimensions:	7.5 in L x 8.81 in W x 8.34 in H
Enclosure Type:	Open
Frequency Rating:	50/60 Hz
Housing Material:	Silicon Steel
Insulation:	Class B/130 deg C
Maximum Amperage Rating:	25 A
Mounting Type:	Panel
Phase:	1
Power Rating:	3000 VA
Primary Voltage:	240/480, 230/460, 220/440 VAC
Secondary Voltage:	110/115/120 VAC
Series:	TA Series
Temperature Rating:	80 deg C
