TAFB17K215SM QM

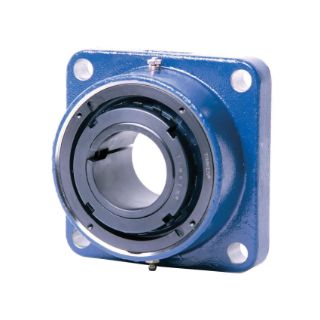

Picture of TAFB17K215SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAFB17K215SM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,536.85 / EA

Description

Brand Name

Timken®

Type

M Seal Solid Block

Description

The TA series feature a 2300-series tapered adapter sleeve for increased shaft contact. This design offers the best shaft concentricity and highest capacity all the while having the ability to accommodate undersized shafting.
Timken®, TAFB17K215SM, Spherical Roller Bearing Housed Unit, M Seal Solid Block, Series: TA Series, 2-15/16 in Bore, 6.68 in Bolt Center-to-Center Length, 9.45 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8.35 in Overall Length/Diameter, 3.49 in Overall Depth, 8.35 in Overall Height, Tapered Adapter Locking Device, Cast Steel Seal, 66900 lb Dynamic/71900 lb Static Load, 1400 rpm Grease/Oil Maximum

Application

For use with 2-15/16 in shaft diameter

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:6.68 in
Bolt Circle Diameter:9.45 in
Bore Diameter:2-15/16 in
Flange Mounting Type:4-Bolt Square
Load Capacity:66900 lb Dynamic/71900 lb Static
Locking Device:Tapered Adapter
Maximum Speed:1400 rpm Grease/Oil
Overall Depth:3.49 in
Overall Height:8.35 in
Overall Length/Diameter:8.35 in
Seal Material:Cast Steel
Series:TA Series

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 15/16 in
