TAFC17K215SM QM

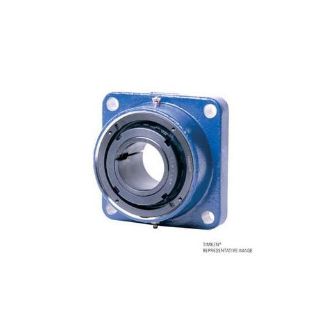

Picture of TAFC17K215SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAFC17K215SM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,536.85 / EA

Description

Brand Name

Timken®

Type

Single Nut Adapter

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAFC17K215SM, Square Flange Block, Single Nut Adapter, Series: TAFC, 2.9375 in Bore, 6.68 in Bolt Center-to-Center Length, 9.45 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8.35 in Overall Length/Diameter, 3.49 in Overall Depth, 8.35 in Overall Height, Tapered Adapter Locking Device, Steel Bearing, Nitrile Rubber Seal, 297000 N Dynamic/320000 N Static Load, 1400 rpm Grease/1400 rpm Oil Maximum, -50 to 200 deg F

Application

Offers superior sealing in moist and dirty applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:6.68 in
Bolt Circle Diameter:9.45 in
Bore Diameter:2.9375 in
Flange Mounting Type:4-Bolt Square
Load Capacity:297000 N Dynamic/320000 N Static
Locking Device:Tapered Adapter
Maximum Speed:1400 rpm Grease/1400 rpm Oil
Overall Depth:3.49 in
Overall Height:8.35 in
Overall Length/Diameter:8.35 in
Seal Material:Nitrile Rubber
Series:TAFC
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
