TAFK11K200SB QM

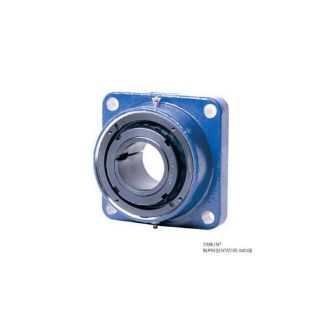

Picture of TAFK11K200SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAFK11K200SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$889.48 / EA

Description

Brand Name

Timken®

Type

Single Nut Adapter

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAFK11K200SB, Square Flange Block, Single Nut Adapter, Series: TAFK, 2 in Bore, 4.5 in Bolt Center-to-Center Length, 6.4 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 5.8 in Overall Length/Diameter, 2.82 in Overall Depth, 5.8 in Overall Height, Tapered Adapter Locking Device, Steel Bearing, Nitrile Rubber Seal, 206000 N Dynamic/216000 N Static Load, 1500 rpm Grease/1500 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.5 in
Bolt Circle Diameter:6.4 in
Bore Diameter:2 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:206000 N Dynamic/216000 N Static
Locking Device:Tapered Adapter
Maximum Speed:1500 rpm Grease/1500 rpm Oil
Overall Depth:2.82 in
Overall Height:5.8 in
Overall Length/Diameter:5.8 in
Seal Material:Nitrile Rubber
Series:TAFK
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 in
