TAFK17K075SM QM

Name: TAFK17K075SM QM
Brand: Timken
SKU: TAFK17K075SM QM
Price: 2,265.56 USD
Availability: OutOfStock

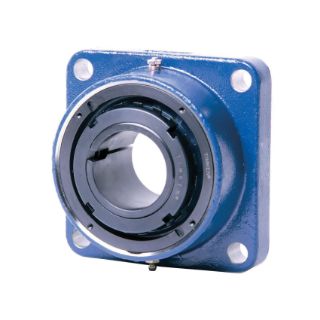

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

TAFK17K075SM

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$2,265.56 / EA

Description

Brand Name

Timken®

Type

Heavy Duty Non-Expansion

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.

Timken®, TAFK17K075SM, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion, Series: 9000, 75 mm Bore, 170.7 mm Bolt Center-to-Center Length, 41.3 mm Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 212.9 mm Overall Length/Diameter, 96.3 mm Overall Depth, 212.9 mm Overall Height, Tapered Adapter Locking Device, Steel Bearing, Nitrile Rubber Seal, 66900 lb Dynamic/71900 lb Static Load, 1400 rpm Maximum, -40 to 121 deg C, Powder Coated

Application

Aggregate, Cement, Metal Mills, Mining, Power Generation, Pulp, Paper, Material Conveying, Commercial, Industrial Building Equipment, Sugar Mills, Agriculture, Waste Management, Water Treatment, HVAC, Fans, Blowers, Cranes, Lifts, Hoists, Off-Highway and Construction Vehicles Industries

Standards

ANSI/ABMA Standard | ATEX 94/9/EC | CE 93/68/EEC | REACH EC 1907/2006/RoHS 2011/65

Features

2300 series tapered adapter sleeve for increased shaft contact
Best shaft concentricity and highest capacity all the while having the ability to accommodate undersized housing
Direct drop-in replacement for SAF/SN split cap housing dimensions
Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
Double row bearing
Cast steel housing
Open end type
Solid block housing
Do not operate at bearing temperatures above 121 deg C

Specifications

Bearing Material:	Steel
Bolt Center-to-Center Length:	170.7 mm
Bolt Circle Diameter:	41.3 mm
Bore Diameter:	75 mm
Finish:	Powder Coated
Flange Mounting Type:	4-Bolt Square
Load Capacity:	66900 lb Dynamic/71900 lb Static
Locking Device:	Tapered Adapter
Maximum Speed:	1400 rpm
Overall Depth:	96.3 mm
Overall Height:	212.9 mm
Overall Length/Diameter:	212.9 mm
Seal Material:	Nitrile Rubber
Series:	9000
Temperature Rating:	-40 to 121 deg C
