TAK2 3/16 TKN

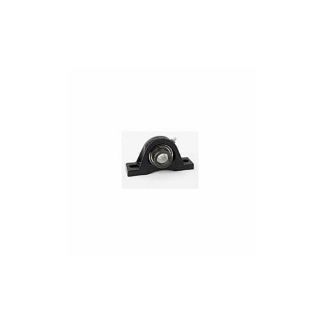

Picture of TAK2 3/16 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAK2 3/16
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$622.96 / EA

Description

Brand Name

Timken®

Type

Normal Duty

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken®, TAK2 3/16, Pillow Block Ball Bearing Unit, Normal Duty, Series: TAK, 2-3/16 in Bore, 6.937 in Bolt Center-to-Center Length, 2.437 in Base to Bore Centerline, 8.752 in Overall Length, 2-13/16 in Overall Width, 4.969 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2.374 in Base Width, Eccentric Locking Device, Tri-Ply Shroud Seal, Non-Expansion (Fixed), 9750 lb Dynamic/6570 lb Static Load, 250 deg F, 500 rpm Maximum, Cast Iron, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

  • Heavier than our standard block with solid, flat feet for increased strength
  • Compact, one-piece housing can be mounted in any position
  • Pillow blocks self-align at mounting with the spherical outside diameter of the bearing fitting into the corresponding spherical housing seat
  • Pre-lubricated and ready for immediate installation
  • Grease fitting for relubrication
  • All units are supplied with G-KPPB tri-ply seal wide-inner-ring ball bearing and locking collar
  • TAK with G-KPPB (tri-ply seal) wide-inner-ring ball bearings

Specifications

Base to Bore Centerline:2.437 in
Base Width:2.374 in
Bolt Center-to-Center Length:6.937 in
Bore Diameter:2-3/16 in
Bore Type:Round
Expansion Type:Non-Expansion (Fixed)
Finish:Uncoated
Load Capacity:9750 lb Dynamic/6570 lb Static
Locking Device:Eccentric
Material:Cast Iron
Maximum Speed:500 rpm
Mounting Type:Two-Bolt Base
Overall Height:4.969 in
Overall Length:8.752 in
Overall Width:2-13/16 in
Seal Type:Tri-Ply Shroud
Series:TAK
Temperature Rating:250 deg F
