TAMC11K115SM QM

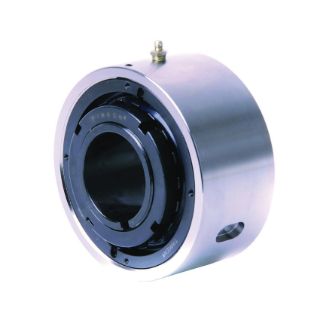

Picture of TAMC11K115SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAMC11K115SM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,028.49 / EA

Description

Brand Name

Timken®

Type

Tapered Bore Non-Expansion

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, TAMC11K115SM, Spherical Roller Bearing Cartridge Block, Tapered Bore Non-Expansion, Series: TAMC, 1-15/16 in Bore, 4.531 in OD, 2.32 in Width, 26300 lb Dynamic/26600 lb Static Load, Steel Bearing, Nitrile Rubber Seal, 2200 rpm Grease/Oil Maximum, 32 to 104 deg F, Powder Coated

Application

Aggregate and Cement, Agriculture, Material Conveying, Metal Mills, Mining, Power Generation Industries

Standards

ABMA/ANSI Standard

Features

  • 2300 series tapered adapter sleeve for increased shaft contact
  • Best shaft concentricity and highest capacity all the while having the ability to accommodate undersized housing
  • Direct drop-in replacement for SAF/SN split cap housing dimensions
  • M seal triple-lip contacting, self-purging nitrile rubber is excellent in moist and dirty applications and chemical and corrosion-resistant
  • Double row, extreme duty and open end
  • 22211 bearing insert bore series
  • Cast steel housing
  • Tapered adapter lock

Specifications

Bearing Material:Steel
Bore Diameter:1-15/16 in
Finish:Powder Coated
Load Capacity:26300 lb Dynamic/26600 lb Static
Maximum Speed:2200 rpm Grease/Oil
Outside Diameter:4.531 in
Seal Material:Nitrile Rubber
Series:TAMC
Temperature Rating:32 to 104 deg F
Width:2.32 in

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
1 15/16 in
