TAMC20K307ST QM

Name: TAMC20K307ST QM
Brand: Timken
SKU: TAMC20K307ST QM
Price: 2,637.78 USD
Availability: OutOfStock

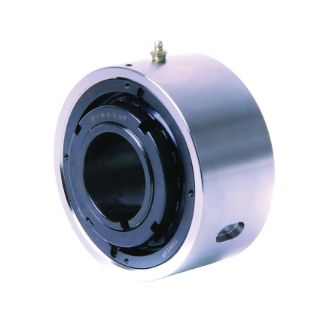

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

TAMC20K307ST

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$2,637.78 / EA

Description

Brand Name

Timken®

Type

Tapered Bore Non-Expansion

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.

Timken®, TAMC20K307ST, Spherical Roller Bearing Cartridge Block, Tapered Bore Non-Expansion, Series: TAMC, 3-7/16 in Bore, 8-1/8 in OD, 3.82 in Width, 97700 lb Dynamic/113000 lb Static Load, Steel Bearing, PTFE Seal, 1600 rpm Grease/2000 rpm Oil Maximum, 32 to 104 deg F, Powder Coated

Application

Aggregate and Cement, Agriculture, Material Conveying, Metal Mills, Mining, Power Generation Industries

Standards

ABMA/ANSI Standard

Features

2300 series tapered adapter sleeve for increased shaft contact
Best shaft concentricity and highest capacity all the while having the ability to accommodate undersized housing
Direct drop-in replacement for SAF/SN split cap housing dimensions
Double row, extreme duty and open end
22220 bearing insert bore series
Cast steel housing
Tapered adapter lock

Specifications

Bearing Material:	Steel
Bore Diameter:	3-7/16 in
Finish:	Powder Coated
Load Capacity:	97700 lb Dynamic/113000 lb Static
Maximum Speed:	1600 rpm Grease/2000 rpm Oil
Outside Diameter:	8-1/8 in
Seal Material:	PTFE
Series:	TAMC
Temperature Rating:	32 to 104 deg F
Width:	3.82 in
