TAPA15K207SC QM

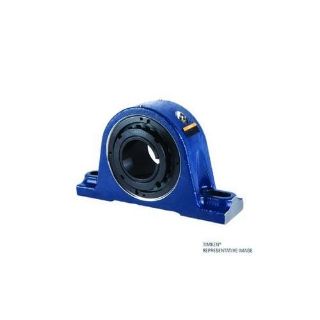

Picture of TAPA15K207SC QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPA15K207SC
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,098.58 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAPA15K207SC, Pillow Block, Series: TAPA, 2.4375 in Bore, 7.88 to 9.63 in Bolt Center-to-Center Length, 3.25 in Base to Bore Centerline, 10.88 in Overall Length, 3.08 in Overall Width, 6.43 in Overall Height, 2-Bolt Mounting, Cylindrical Bore, 2.7 in Base Width, Tapered Adapter Locking Device, Non-Expansion (Fixed), 49900 lb Dynamic/54100 lb Static Load, -30 to 400 deg F, 1300 rpm Grease/1300 rpm Oil Maximum, Steel, Painted

Application

Excellent in high-load applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Double-lip seal with garter spring for maximum contact, and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself

Specifications

Base to Bore Centerline:3.25 in
Base Width:2.7 in
Bolt Center-to-Center Length:7.88 to 9.63 in
Bore Diameter:2.4375 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Painted
Load Capacity:49900 lb Dynamic/54100 lb Static
Locking Device:Tapered Adapter
Material:Steel
Maximum Speed:1300 rpm Grease/1300 rpm Oil
Mounting Type:2-Bolt
Overall Height:6.43 in
Overall Length:10.88 in
Overall Width:3.08 in
Seal Type:C Seal
Series:TAPA
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Inch
Shaft Diameter
2 7/16 in
Type
2 Bolt Pillow Block
