TAPA15K208ST QM

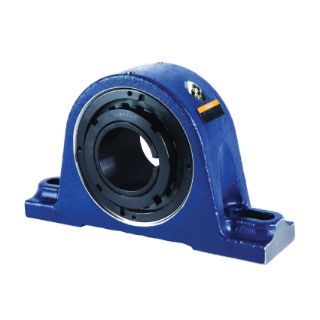

Picture of TAPA15K208ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPA15K208ST
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$998.70 / EA

Description

Brand Name

Timken®

Type

Extra Heavy Duty SAF Style Solid Block

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, TAPA15K208ST, Pillow Block Spherical Roller Bearing Unit, 2-1/2 in Bore, 7.88 to 9.63 in Bolt Center-to-Center Length, 3-1/4 in Base to Bore Centerline, 10.88 in Overall Length, 3.08 in Overall Width, 6.43 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 2.7 in Base Width, Tapered Adapter Locking Device, Non-Expansion (Fixed), 49900 lb Dynamic/54100 lb Static Load, 2400 rpm Grease/2900 rpm Oil Maximum, Cast Steel, Powder Coated

Application

Metal Mills, Aggregate, Cement, Mining, Power Generation, Pulp, Paper, Material Conveying, Commercial, Industrial Building Equipment, Sugar Mills, Agriculture, Waste Management, Water Treatment, HVAC, Fans, Blowers, Cranes, Lifts, Hoists, Sawmills and Other Forest Process Industries

Features

  • 2300 series tapered adapter sleeve for increased shaft contact
  • Best shaft concentricity and highest capacity all the while having the ability to accommodate undersized housing
  • Direct drop-in replacement for SAF/SN split cap housing dimensions
  • Bearing steel
  • Double row bearing
  • 22215 bearing insert bore series
  • Open end type
  • 360 deg shaft holding
  • Accommodates undersized shafting

Specifications

Base to Bore Centerline:3-1/4 in
Base Width:2.7 in
Bolt Center-to-Center Length:7.88 to 9.63 in
Bore Diameter:2-1/2 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:49900 lb Dynamic/54100 lb Static
Locking Device:Tapered Adapter
Material:Cast Steel
Maximum Speed:2400 rpm Grease/2900 rpm Oil
Mounting Type:Two-Bolt Base
Overall Height:6.43 in
Overall Length:10.88 in
Overall Width:3.08 in
Seal Type:Labyrinth T

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Inch
Shaft Diameter
2 1/2 in
Type
2 Bolt Pillow Block
