TAPG17K215SO QM

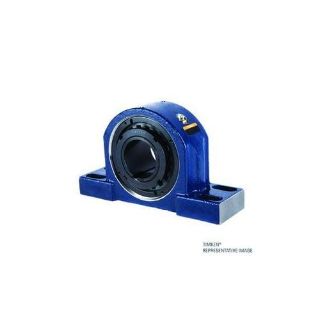

Picture of TAPG17K215SO QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPG17K215SO
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,965.69 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAPG17K215SO, Pillow Block, Series: TAPG, 2.9375 in Bore, 9.44 to 11.31 in Bolt Center-to-Center Length, 3.74 in Base to Bore Centerline, 12.63 in Overall Length, 3.78 in Overall Width, 7.2 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 3.63 in Base Width, Tapered Adapter Locking Device, O Seal, Non-Expansion (Fixed), 66900 lb Dynamic/71900 lb Static Load, -40 to 260 deg F, 1100 rpm Grease/1100 rpm Oil Maximum, Steel, Painted

Application

Excellent in high-load applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Medium Duty contact triple-lip seal made of high-strength urethane for superior abrasion resistance

Specifications

Base to Bore Centerline:3.74 in
Base Width:3.63 in
Bolt Center-to-Center Length:9.44 to 11.31 in
Bore Diameter:2.9375 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Painted
Load Capacity:66900 lb Dynamic/71900 lb Static
Locking Device:Tapered Adapter
Material:Steel
Maximum Speed:1100 rpm Grease/1100 rpm Oil
Mounting Type:4-Bolt
Overall Height:7.2 in
Overall Length:12.63 in
Overall Width:3.78 in
Seal Type:O Seal
Series:TAPG
Temperature Rating:-40 to 260 deg F

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Inch
Shaft Diameter
2 15/16 in
Type
2 Bolt Pillow Block
