TAPG22K315ST QM

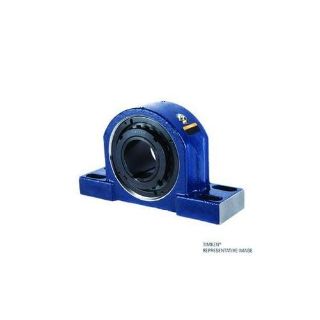

Picture of TAPG22K315ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPG22K315ST
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,730.52 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAPG22K315ST, Pillow Block, Series: TAPG, 3.9375 in Bore, 13.2 in Bolt Center-to-Center Length, 4.921 in Base to Bore Centerline, 16 in Overall Length, 4.86 in Overall Width, 9.38 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 4.75 in Base Width, Tapered Adapter Locking Device, Non-Expansion (Fixed), 125000 lb Dynamic/147000 lb Static Load, -100 to 500 deg F, 1200 rpm Grease/1200 rpm Oil Maximum, Steel, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Base to Bore Centerline:4.921 in
Base Width:4.75 in
Bolt Center-to-Center Length:13.2 in
Bore Diameter:3.9375 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Painted
Load Capacity:125000 lb Dynamic/147000 lb Static
Locking Device:Tapered Adapter
Material:Steel
Maximum Speed:1200 rpm Grease/1200 rpm Oil
Mounting Type:4-Bolt
Overall Height:9.38 in
Overall Length:16 in
Overall Width:4.86 in
Seal Type:T Seal
Series:TAPG
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Inch
Shaft Diameter
3 15/16 in
Type
2 Bolt Pillow Block
