TAPH15K208SEM QM

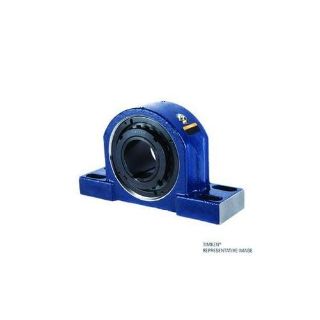

Picture of TAPH15K208SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPH15K208SEM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,248.30 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAPH15K208SEM, Pillow Block, Series: TAPH, 2.5 in Bore, 7.94 to 9.69 in Bolt Center-to-Center Length, 3.25 in Base to Bore Centerline, 10.88 in Overall Length, 3.29 in Overall Width, 5.38 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 3.13 in Base Width, Tapered Adapter Locking Device, M Seal, Expansion, 49900 lb Dynamic/54100 lb Static Load, -50 to 200 deg F, 1600 rpm Grease/1600 rpm Oil Maximum, Steel, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Base to Bore Centerline:3.25 in
Base Width:3.13 in
Bolt Center-to-Center Length:7.94 to 9.69 in
Bore Diameter:2.5 in
Bore Type:Cylindrical
Expansion Type:Expansion
Finish:Painted
Load Capacity:49900 lb Dynamic/54100 lb Static
Locking Device:Tapered Adapter
Material:Steel
Maximum Speed:1600 rpm Grease/1600 rpm Oil
Mounting Type:4-Bolt
Overall Height:5.38 in
Overall Length:10.88 in
Overall Width:3.29 in
Seal Type:M Seal
Series:TAPH
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Inch
Shaft Diameter
2 1/2 in
Type
2 Bolt Pillow Block
