TAPH20K307SB QM

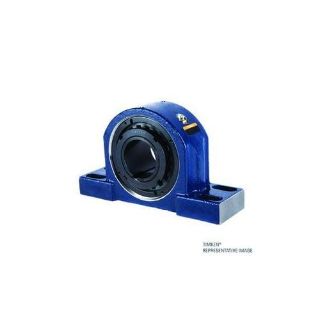

Picture of TAPH20K307SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPH20K307SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,587.61 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAPH20K307SB, Pillow Block, Series: TAPH, 3.4375 in Bore, 10.88 to 13.38 in Bolt Center-to-Center Length, 4.5 in Base to Bore Centerline, 15 in Overall Length, 4.46 in Overall Width, 8.54 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 4.31 in Base Width, Tapered Adapter Locking Device, B Seal, Non-Expansion (Fixed), 97700 lb Dynamic/113000 lb Static Load, -50 to 200 deg F, 900 rpm Grease/900 rpm Oil Maximum, Steel, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Base to Bore Centerline:4.5 in
Base Width:4.31 in
Bolt Center-to-Center Length:10.88 to 13.38 in
Bore Diameter:3.4375 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Painted
Load Capacity:97700 lb Dynamic/113000 lb Static
Locking Device:Tapered Adapter
Material:Steel
Maximum Speed:900 rpm Grease/900 rpm Oil
Mounting Type:4-Bolt
Overall Height:8.54 in
Overall Length:15 in
Overall Width:4.46 in
Seal Type:B Seal
Series:TAPH
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Inch
Shaft Diameter
3 7/16 in
Type
2 Bolt Pillow Block
