TAPH22K315ST QM

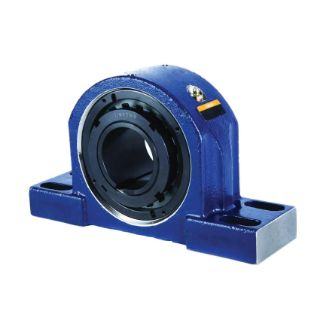

Picture of TAPH22K315ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPH22K315ST
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,798.30 / EA

Description

Brand Name

Timken®

Type

SAF Style Solid Block

Description

Timken®, TAPH22K315ST, Spherical Roller Bearing Housed Unit, SAF Style Solid Block, Series: TA/DV Series, 3-15/16 in Bore, 11.88 to 14.5 in Bolt Center-to-Center Length, 4.94 in Base to Bore Centerline, 16 in Overall Length, 4.86 in Overall Width, 9.38 in Overall Height, Four-Bolt Base Mounting, Cylindrical Bore, 4-3/4 in Base Width, Tapered Adapter Locking Device, Non-Expansion (Fixed), 125000 lb Dynamic/147000 lb Static Load, 1200 rpm Grease/1700 rpm Oil Maximum, Cast Steel

Application

For use with 3-15/16 in shaft diameter

Specifications

Base to Bore Centerline:4.94 in
Base Width:4-3/4 in
Bolt Center-to-Center Length:11.88 to 14.5 in
Bore Diameter:3-15/16 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Load Capacity:125000 lb Dynamic/147000 lb Static
Locking Device:Tapered Adapter
Material:Cast Steel
Maximum Speed:1200 rpm Grease/1700 rpm Oil
Mounting Type:Four-Bolt Base
Overall Height:9.38 in
Overall Length:16 in
Overall Width:4.86 in
Seal Type:T Seal
Series:TA/DV Series

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Inch
Shaft Diameter
3 15/16 in
Type
2 Bolt Pillow Block
