TAPK26K407SB QM

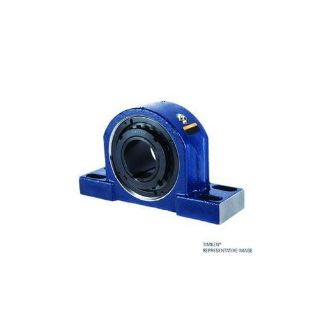

Picture of TAPK26K407SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPK26K407SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5,573.98 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAPK26K407SB, Pillow Block, Series: TAPK, 4.4375 in Bore, 16 in Bolt Center-to-Center Length, 6.125 in Base to Bore Centerline, 18.5 in Overall Length, 6.2 in Overall Width, 11.15 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 6.75 in Base Width, Tapered Adapter Locking Device, B Seal, Non-Expansion (Fixed), 170000 lb Dynamic/212000 lb Static Load, -50 to 200 deg F, 400 rpm Grease/400 rpm Oil Maximum, Steel, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Base to Bore Centerline:6.125 in
Base Width:6.75 in
Bolt Center-to-Center Length:16 in
Bore Diameter:4.4375 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Painted
Load Capacity:170000 lb Dynamic/212000 lb Static
Locking Device:Tapered Adapter
Material:Steel
Maximum Speed:400 rpm Grease/400 rpm Oil
Mounting Type:4-Bolt
Overall Height:11.15 in
Overall Length:18.5 in
Overall Width:6.2 in
Seal Type:B Seal
Series:TAPK
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Inch
Shaft Diameter
4 7/16 in
Type
2 Bolt Pillow Block
