TAPN11K050SN QM

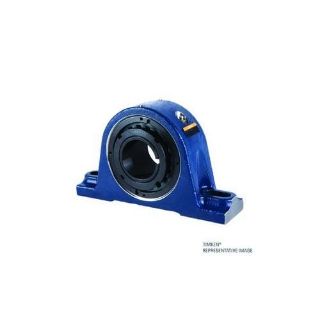

Picture of TAPN11K050SN QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPN11K050SN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$852.15 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAPN11K050SN, Pillow Block, Series: TAPN, 1.9685 in Bore, 6.5 to 8.7 in Bolt Center-to-Center Length, 2.75 in Base to Bore Centerline, 9.88 in Overall Length, 2.59 in Overall Width, 5.33 in Overall Height, 2-Bolt Mounting, Cylindrical Bore, 2.38 in Base Width, Tapered Adapter Locking Device, Non-Expansion (Fixed), 31400 lb Dynamic/31900 lb Static Load, -30 to 400 deg F, 2200 rpm Grease/2200 rpm Oil Maximum, Steel, Painted

Application

Excellent in high-load applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Medium-duty contact triple-lip seal, made of Viton
  • This seal provides excellent chemical resistance and can operate at higher temperatures than nitrile rubber

Specifications

Base to Bore Centerline:2.75 in
Base Width:2.38 in
Bolt Center-to-Center Length:6.5 to 8.7 in
Bore Diameter:1.9685 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Painted
Load Capacity:31400 lb Dynamic/31900 lb Static
Locking Device:Tapered Adapter
Material:Steel
Maximum Speed:2200 rpm Grease/2200 rpm Oil
Mounting Type:2-Bolt
Overall Height:5.33 in
Overall Length:9.88 in
Overall Width:2.59 in
Seal Type:N Seal
Series:TAPN
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Metric
Shaft Diameter
50 mm
Type
2 Bolt Pillow Block
