TAPN11K050ST QM

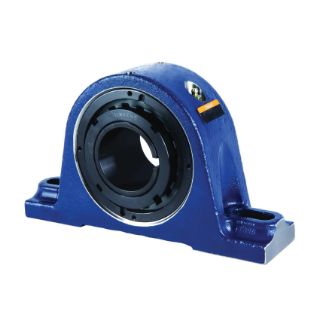

Picture of TAPN11K050ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPN11K050ST
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$774.71 / EA

Description

Brand Name

Timken®

Type

Extra Heavy Duty SN Style Solid Block

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, TAPN11K050ST, Pillow Block Spherical Roller Bearing Unit, 50 mm Bore, 165.1 to 221 mm Bolt Center-to-Center Length, 69.9 mm Base to Bore Centerline, 251 mm Overall Length, 65.8 mm Overall Width, 135.4 mm Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 60.5 mm Base Width, Tapered Adapter Locking Device, Non-Expansion (Fixed), 26300 lb Dynamic/26600 lb Static Load, 3200 rpm Grease/3800 rpm Oil Maximum, Cast Steel, Powder Coated

Application

Metal Mills, Aggregate, Cement, Mining, Power Generation, Pulp, Paper, Material Conveying, Commercial, Industrial Building Equipment, Sugar Mills, Agriculture, Waste Management, Water Treatment, HVAC, Fans, Blowers, Cranes, Lifts, Hoists, Sawmills and Other Forest Process Industries

Features

  • 2300 series tapered adapter sleeve for increased shaft contact
  • Best shaft concentricity and highest capacity all the while having the ability to accommodate undersized housing
  • Direct drop-in replacement for SAF/SN split cap housing dimensions
  • Bearing steel
  • Double row bearing
  • 22211 bearing insert bore series
  • Open end type
  • 360 deg shaft holding
  • Accommodates undersized shafting

Specifications

Base to Bore Centerline:69.9 mm
Base Width:60.5 mm
Bolt Center-to-Center Length:165.1 to 221 mm
Bore Diameter:50 mm
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:26300 lb Dynamic/26600 lb Static
Locking Device:Tapered Adapter
Material:Cast Steel
Maximum Speed:3200 rpm Grease/3800 rpm Oil
Mounting Type:Two-Bolt Base
Overall Height:135.4 mm
Overall Length:251 mm
Overall Width:65.8 mm
Seal Type:Labyrinth T

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Metric
Shaft Diameter
50 mm
Type
2 Bolt Pillow Block
