TAPN20K090SB QM

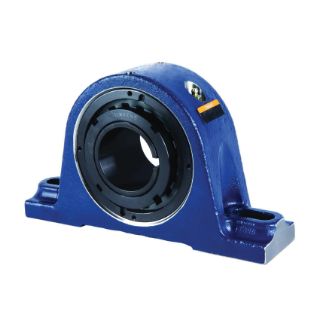

Picture of TAPN20K090SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPN20K090SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,285.62 / EA

Description

Brand Name

Timken®

Type

SN Style Solid Block

Description

Timken®, TAPN20K090SB, Spherical Roller Bearing Housed Unit, SN Style Solid Block, Series: TA/DV Series, 90 mm Bore, 10.88 to 13.13 in Bolt Center-to-Center Length, 4.41 in Base to Bore Centerline, 14-3/4 in Overall Length, 4.03 in Overall Width, 8.54 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 3.42 in Base Width, Tapered Adapter Locking Device, Non-Expansion (Fixed), 97700 lb Dynamic/113000 lb Static Load, 900 rpm Grease/Oil Maximum, Cast Steel

Application

For use with 90 mm shaft diameter

Specifications

Base to Bore Centerline:4.41 in
Base Width:3.42 in
Bolt Center-to-Center Length:10.88 to 13.13 in
Bore Diameter:90 mm
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Load Capacity:97700 lb Dynamic/113000 lb Static
Locking Device:Tapered Adapter
Material:Cast Steel
Maximum Speed:900 rpm Grease/Oil
Mounting Type:Two-Bolt Base
Overall Height:8.54 in
Overall Length:14-3/4 in
Overall Width:4.03 in
Seal Type:B Seal
Series:TA/DV Series

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Metric
Shaft Diameter
90 mm
Type
2 Bolt Pillow Block
