TAPN22K315SC QM

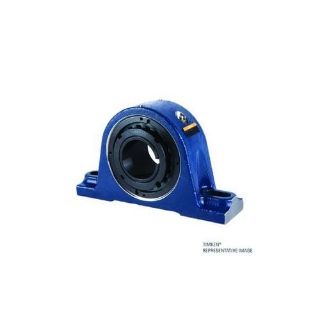

Picture of TAPN22K315SC QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPN22K315SC
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,282.89 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, TAPN22K315SC, Pillow Block, Series: TAPN, 3.9375 in Bore, 12.5 to 14.5 in Bolt Center-to-Center Length, 4.92 in Base to Bore Centerline, 16 in Overall Length, 4.47 in Overall Width, 9.47 in Overall Height, 2-Bolt Mounting, Cylindrical Bore, 3.96 in Base Width, Tapered Adapter Locking Device, Non-Expansion (Fixed), 125000 lb Dynamic/147000 lb Static Load, -30 to 400 deg F, 600 rpm Grease/600 rpm Oil Maximum, Steel, Painted

Application

Excellent in high-load applications

Features

  • Excellent in high-load applications, this design uses a longer 2300-series adapter for increase shaft contact
  • This design offers the best shaft concentricity and highest capacity all while having the ability to accommodate undersized shafting
  • Double-lip seal with garter spring for maximum contact, and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself

Specifications

Base to Bore Centerline:4.92 in
Base Width:3.96 in
Bolt Center-to-Center Length:12.5 to 14.5 in
Bore Diameter:3.9375 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Painted
Load Capacity:125000 lb Dynamic/147000 lb Static
Locking Device:Tapered Adapter
Material:Steel
Maximum Speed:600 rpm Grease/600 rpm Oil
Mounting Type:2-Bolt
Overall Height:9.47 in
Overall Length:16 in
Overall Width:4.47 in
Seal Type:C Seal
Series:TAPN
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Inch
Shaft Diameter
3 15/16 in
Type
2 Bolt Pillow Block
