TAPN26K115SO QM

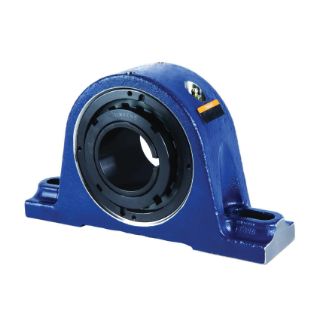

Picture of TAPN26K115SO QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
TAPN26K115SO
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,581.29 / EA

Description

Brand Name

Timken®

Type

Extra Heavy Duty SN Style Solid Block

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, TAPN26K115SO, Pillow Block Spherical Roller Bearing Unit, 115 mm Bore, 367.3 to 400.1 mm Bolt Center-to-Center Length, 150 mm Base to Bore Centerline, 444.5 mm Overall Length, 135.9 mm Overall Width, 281.7 mm Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 128 mm Base Width, Tapered Adapter Locking Device, Triple Lip O Seal, Non-Expansion (Fixed), 170000 lb Dynamic/212000 lb Static Load, 400 rpm Maximum, Cast Steel, Powder Coated

Application

Metal Mills, Aggregate, Cement, Mining, Power Generation, Pulp, Paper, Material Conveying, Commercial, Industrial Building Equipment, Sugar Mills, Agriculture, Waste Management, Water Treatment, HVAC, Fans, Blowers, Cranes, Lifts, Hoists, Sawmills and Other Forest Process Industries

Features

  • 2300 series tapered adapter sleeve for increased shaft contact
  • Best shaft concentricity and highest capacity all the while having the ability to accommodate undersized housing
  • Direct drop-in replacement for SAF/SN split cap housing dimensions
  • Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
  • Bearing steel
  • Double row bearing
  • 22226 bearing insert bore series
  • Open end type
  • 360 deg shaft holding
  • Accommodates undersized shafting

Specifications

Base to Bore Centerline:150 mm
Base Width:128 mm
Bolt Center-to-Center Length:367.3 to 400.1 mm
Bore Diameter:115 mm
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:170000 lb Dynamic/212000 lb Static
Locking Device:Tapered Adapter
Material:Cast Steel
Maximum Speed:400 rpm
Mounting Type:Two-Bolt Base
Overall Height:281.7 mm
Overall Length:444.5 mm
Overall Width:135.9 mm
Seal Type:Triple Lip O

Products Specifications

Brand Name
Timken
Locking Type
Tapered Adapter Lock
Measuring Units
Metric
Shaft Diameter
115 mm
Type
2 Bolt Pillow Block
