TB32669 ACM

Name: TB32669 ACM
Brand: Acme Electric
SKU: TB32669 ACM
Availability: OutOfStock

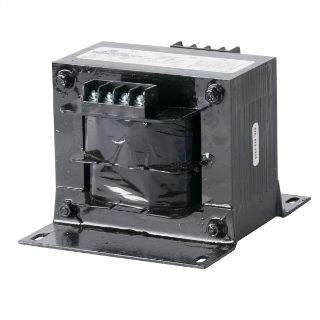

Acme Electric® TB32669 TB Series Industrial Control Transformer, 240/416/480/600 VAC, 230/400/460/575 VAC, 220/380/440/550 VAC, 208/500 VAC Primary, 99/120/130 VAC, 95/115/125 VAC, 91/110/120 VAC, 85/100/110 VAC Secondary, 350 VA Power Rating, 50/60 Hz

Manufacturer: Acme Electric

Manufacturer part number: TB32669

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Acme Electric®

Type

Industrial

Description

Acme TB series industrial control transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing secondary voltage stability beyond practical limits. Acme TB series transformers are dry type, step down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. Voltage regulation of Acme TB series transformers exceeds standards recommended by the National Electrical Manufacturers Association. Secondary circuit voltage drop between no-load and momentary overload remains exceptionally low. This excellent secondary circuit voltage regulation assures reliable operation of electromagnetic components and may permit the use of a smaller and less expensive industrial control transformer.

Acme Electric® Control Transformer, Industrial, Series: TB Series, 240/416/480/600 VAC, 230/400/460/575 VAC, 220/380/440/550 VAC, 208/500 VAC Primary, 99/120/130 VAC, 95/115/125 VAC, 91/110/120 VAC, 85/100/110 VAC Secondary, 350 VA Power, 50/60 Hz Frequency, 1 ph, 2.69 A Maximum, Lead Wire/Screw Connection, Panel Mounting, Class B/130 deg C Insulation, Open Enclosure, 80 deg C, Silicon Steel Housing Material, 4.65 in L x 6.23 in W x 4.15 in H Dimensions

Application

For motor starters, contactors, solenoids and timers or other loads applications

Standards

OSHA Approved | UL 506 | 50B8 | B3223 | E79947V1 | CSA 7357 | IEEE Certified | ANSI Specified

Features

Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
Designs incorporate precision split bobbin wound coils for improved regulation
Primary fuse blocks and secondary fuse kits available and easily adaptable
Series-parallel connecting links save wiring and labor costs
Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
Integrally molded terminal blocks with isolation barriers to prevent arc over
Copper windings on all groups
Heavy gauge steel mounting plate adapts to various mounting dimensions
Voltage regulation exceeds NEMA requirements
Open coil and core
0.22 x 0.5 in mounting slot
240/416/480/600; 230/400/460/575, 220/380/440/550; 208/500 VAC primary volt
99/120/130; 95/115/125; 91/110/120; 85/100/110 VAC secondary volt
Silicon steel enclosure

Specifications

Connection Type:	Lead Wire/Screw
Country of Origin:	US
Dimensions:	4.65 in L x 6.23 in W x 4.15 in H
Enclosure Type:	Open
Frequency Rating:	50/60 Hz
Housing Material:	Silicon Steel
Insulation:	Class B/130 deg C
Maximum Amperage Rating:	2.69 A
Mounting Type:	Panel
Phase:	1
Power Rating:	350 VA
Primary Voltage:	240/416/480/600 VAC, 230/400/460/575 VAC, 220/380/440/550 VAC, 208/500 VAC
Secondary Voltage:	99/120/130 VAC, 95/115/125 VAC, 91/110/120 VAC, 85/100/110 VAC
Series:	TB Series
Temperature Rating:	80 deg C
