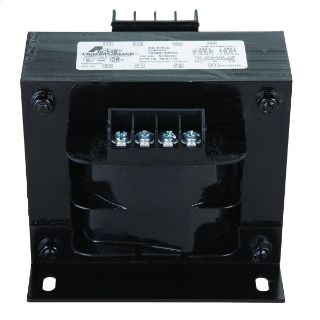

Acme Electric® Legacy™ TB81009 TB Series Open Core and Coil Industrial Control Transformer, 220/440/550//230/460/575/240/480/600 VAC Primary, 90/110/95/115/100/120 VAC Secondary, 75 VA Power Rating, 50/60 Hz, 1 ph Phase
Manufacturer: Acme Electric
Manufacturer part number: TB81009
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Acme Electric®

Type

Open Core and Coil

Description

Acme TB series industrial control transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized without sacrificing secondary voltage stability beyond practical limits. Acme TB series transformers are dry type, step down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. Voltage regulation of Acme TB series transformers exceeds standards recommended by the National Electrical Manufacturers Association. Secondary circuit voltage drop between no-load and momentary overload remains exceptionally low. This excellent secondary circuit voltage regulation assures reliable operation of electromagnetic components and may permit the use of a smaller and less expensive industrial control transformer.
Acme Electric® Legacy™ Industrial Control Transformer, Open Core and Coil, Series: TB Series, 220/440/550//230/460/575/240/480/600 VAC Primary, 90/110/95/115/100/120 VAC Secondary, 75 VA, 50/60 Hz, 1 ph, 0.63 A Maximum, Lead Wire/Screw Terminal, Floor Mount, Class B/130 deg C, Open, 80 deg C, Steel Housing, 4.9 in L x 3 in W x 2.7 in H

Application

For motor starters, contactors, solenoids and timers or other load applications

Standards

OSHA Compliant | UL Listed | CSA Certified | ANSI Specified

Features

  • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
  • Designs incorporate precision split bobbin wound coils for improved regulation
  • Primary fuse blocks and secondary fuse kits available and easily adaptable
  • Series parallel connecting links save wiring and labor costs
  • Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
  • Integrally molded terminal blocks with isolation barriers to prevent arc over
  • Copper windings on all groups
  • Heavy gauge steel mounting plate adapts to various mounting dimensions
  • Voltage regulation exceeds NEMA requirements
  • Open coil and core
  • 0.22 x 0.5 in mounting slot
  • 240/480/600, 230/460/575, 220/440/550 VAC primary Volt
  • 120/100, 115/95, 110/90 VAC secondary Volt
  • Silicon steel enclosure

Specifications

Connection Type:Lead Wire/Screw Terminal
Country of Origin:CN
Dimensions:4.9 in L x 3 in W x 2.7 in H
Enclosure Type:Open
Frequency Rating:50/60 Hz
Housing Material:Steel
Insulation:Class B/130 deg C
Maximum Amperage Rating:0.63 A
Mounting Type:Floor
Phase:1 ph
Power Rating:75 VA
Primary Voltage:220/440/550//230/460/575/240/480/600 VAC
Secondary Voltage:90/110/95/115/100/120 VAC
Series:TB Series
Temperature Rating:80 deg C
