TC12144 MSG

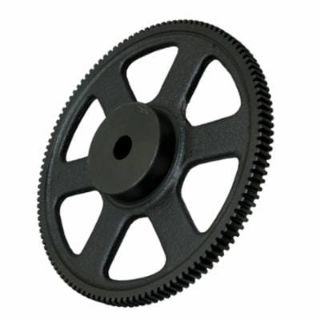

Picture of TC12144 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
TC12144
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$313.37 / EA

Description

Brand Name

Martin

Type

External Tooth Reborable

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, External Tooth Reborable, 1 to 1.688 in Bore Dia, 12.166 in Outside Dia, 144 Teeth, 12 Diametral Pitch, 12 in, 1 in Face Width, Type B3, 2-3/4 in Hub Dia, 1 in Hub Projection, 2 in Overall Length, 20 deg Pressure Angle, Cast Iron

Features

  • Precise machining and processes ensure consistent finish and high quality
  • Commercial Class Gear. AGMA 6-8

Specifications

Bore Diameter:1 to 1.688 in
Country of Origin:US
Diametral Pitch:12
Face Width:1 in
Hub Diameter:2-3/4 in
Hub Projection:1 in
Hub Type:Type B3
Material:Cast Iron
Number of Teeth:144
Outside Diameter:12.166 in
Overall Length:2 in
Pitch Diameter:12 in
Pressure Angle:20 deg
