TC16192 MSG

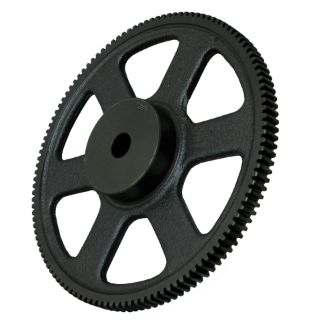

Picture of TC16192 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
TC16192
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$254.66 / EA

Description

Brand Name

Martin

Type

Reboreable

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, Reboreable, 7/8 to 1-13/16 in Bore Dia, 12-1/8 in Outside Dia, 192 Teeth, 16 Diametral Pitch, 12 in, 3/4 in Face Width, Type B, 3 in Hub Dia, 1 in Hub Projection, 1-3/4 in Overall Length, 20 deg Pressure Angle, Cast Iron

Standards

AGMA 6-8

Features

Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:7/8 to 1-13/16 in
Country of Origin:US
Diametral Pitch:16
Face Width:3/4 in
Hub Diameter:3 in
Hub Projection:1 in
Hub Type:Type B
Material:Cast Iron
Number of Teeth:192
Outside Diameter:12-1/8 in
Overall Length:1-3/4 in
Pitch Diameter:12 in
Pressure Angle:20 deg
