TC2233/0-5-HLA INA

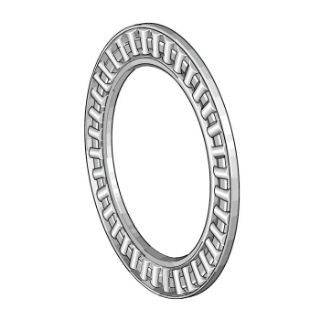

INA TC2233/0-5-HLA Single Direction Axial Needle Roller and Cage Assembly, 1-3/8 in Dia Bore, 2.062 in OD, 0.078 in W, Steel
Manufacturer: INA
Manufacturer part number: TC2233/0-5-HLA
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
30 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

INA

Type

Single Direction

Description

Axial needle roller bearings are construction units consisting of axial needle roller and cage assembles and thrust bearing washers with centering spigots. They can be combined with drawn cup needle roller bearings with open ends, drawn cup needle roller bearings with closed ends and needle roller bearings. The running surface for the needle roller and cage assembly must be hardened and ground.
INA Axial Needle Roller and Cage Assembly, Single Direction, Series: TC Series, 1-3/8 in Bore, 2.062 in OD, 0.078 in Width, 4560 lb Dynamic/21600 lb Static Load, Steel, 6600 rpm Maximum

Standards

ABMA 21.2-1988

Features

  • Suitable for combination with axial bearing washers TWA
  • 0 to 5 micron needle sort

Specifications

Bore Diameter:1-3/8 in
Country of Origin:US
Load Capacity:4560 lb Dynamic/21600 lb Static
Material:Steel
Maximum Speed:6600 rpm
Outside Diameter:2.062 in
Series:TC Series
Width:0.078 in
