TC533111S ACM

Name: TC533111S ACM
Brand: Acme Electric
SKU: TC533111S ACM
Availability: OutOfStock

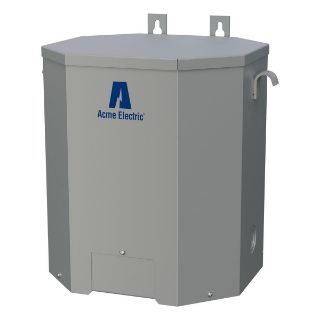

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

TC533111S

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Acme Electric®

Type

Isolation Dry Open Core and Coil

Description

Acme Electric® Distribution Transformer, Isolation Dry Open Core and Coil, 480D VAC Primary, 208Y/120 VAC Secondary, 15 kVA, 60 Hz, 3 ph, 2 Taps, Wire Lead, Floor Mount, 180 deg C, NEMA 3R, 115 deg C, 316 Stainless Steel Housing, 9 in L x 20.3 in W x 18.9 in H

Application

For harsh industrial locations, corrosive chemical exposure, waste water treatment facilities and coastal or marine applications with high salt mist

Standards

UL 506 | UL File No. E79947 | C22.2 No. 47, LR7357-32 | PROP65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

Ground studs for use with non-metallic conduit
Fully encapsulated core and coil
Copper lead wire terminations
Quite operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection
High efficiency and excellent regulation
Wiring connections can be made outside of wiring compartment due to the use of flexible leads
Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front

Specifications

Connection Type:	Wire Lead
Country of Origin:	MX
Dimensions:	9 in L x 20.3 in W x 18.9 in H
Enclosure Type:	NEMA 3R
Frequency Rating:	60 Hz
Housing Material:	316 Stainless Steel
Insulation:	180 deg C
Mounting Type:	Floor
Number of Taps:	2
Phase:	3 ph
Power Rating:	15 kVA
Primary Voltage:	480D VAC
Secondary Voltage:	208Y/120 VAC
Temperature Rating:	115 deg C
