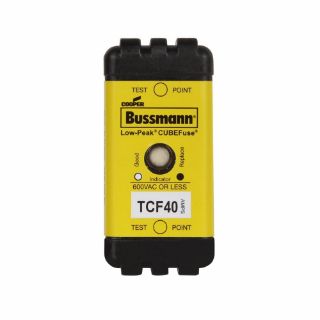

Actual Product May Vary From Image

TCF40 BSF

Name: TCF40 BSF
Brand: Bussmann
SKU: TCF40 BSF
Price: 205.09 USD
Availability: InStock

Bussmann CUBEFuse™ TCF40 Indicating Non-Rejection Time Delay Fuse, 40 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, Square Blade Body

Manufacturer: Bussmann

Manufacturer part number: TCF40

Availability: Expected Leadtime 62 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
12	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$205.09

Qty:

Product Details

Brand Name

Bussmann

Type

Current Limiting Inrush Current Withstand

Alternate Supplier #

Grainger - 2ACA4

Description

The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution requiring up to 70% less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.

Bussmann CUBEFuse™ Time Delay Fuse, Indicating Non-Rejection, Series: TCF, 40 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 0.406 in Dia x 1.54 in L Body Size

Application

Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Industrial Control, Machinery Disconnects and Required Finger safe systems, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory

Standards

Features

The world's first finger safe power fuse system
Smallest footprint of any class fuse including class J, CC, T and RK
The indicating version features easyID™ open fuse technology for faster troubleshooting and reduced downtime
Faster response to damaging faults to help reduce destructive thermal and magnetic forces
True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
High 300 kA interrupt rating safely interrupts virtually any fault
No venting of arc or molten metal and gases during opening
Robust cycling and inrush current withstand
Low let through currents under fault conditions
Provides type 2 "no damage" in protection for IEC® motors starters when properly sized
Easy selective co-ordination with any other Bussmann series Low-Peak™ class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses

Specifications

Amperage Rating:	40 A
Body Size:	0.406 in Dia x 1.54 in L
Body Type:	Square
Class:	CF
Color:	Black
Country of Origin:	CN
Element:	Dual
Frequency Rating:	50/60 Hz
Interrupt Rating:	100/300 kA
Material:	Glass Filled Polyethersulfone
Mounting Type:	Chassis/DIN Rail
Response Time:	10 s at 500%
Series:	TCF
Terminal Type:	Blade
Voltage Rating:	600 VAC/300 VDC
