TEB3BR MSG

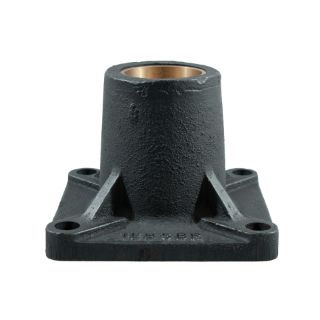

Martin TEB3BR Non Expansion Square Roller Bearing Flange Unit, 1-1/2 in Dia Bore, 4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-1/8 in OAL/Dia
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: TEB3BR
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$199.04

Product Details

Brand Name

Martin

Type

Non Expansion Square

Description

The roller bearing flange unit is manufactured with a cast iron housing which protects it from wear. The cylindrical shape of the roller bearing reduces the overall pressure on the bearing and increases weight carrying capabilities. This precision bearings durability and ability to handle up to 3 deg of total misalignment ensures high performance in a variety of applications.
Martin Roller Bearing Flange Unit, Non Expansion Square, Series: TEB, 1-1/2 in Bore, 4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-1/8 in Overall Length/Diameter, 3-1/4 in Overall Depth, 5-1/8 in Overall Height, Bronze Bearing, Uncoated

Standards

CEMA Standard

Features

Roller bearing, ball bearing, bronze sleeved to be use with standard trough end

Specifications

Bearing Material:Bronze
Bolt Center-to-Center Length:4 in
Bore Diameter:1-1/2 in
Country of Origin:US
Finish:Uncoated
Flange Mounting Type:4-Bolt
Overall Depth:3-1/4 in
Overall Height:5-1/8 in
Overall Length/Diameter:5-1/8 in
Series:TEB
