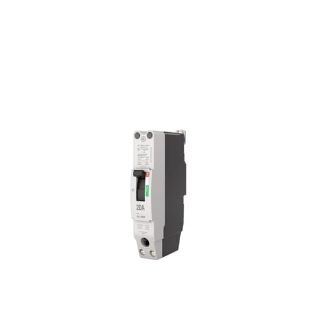

Picture of TEY130 ABB
Actual Product May Vary From Image

TEY130 ABB

TEY 1 POLE 30 AMP
Manufacturer: ABB
Manufacturer part number: TEY130
Availability: Expected Leadtime 15 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
5 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$75.70

Product Details

Description

"The TEY is a one-inch wide per pole, compact, ""bolt-on"" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. TEY 1 POLE 30 AMP"

Application

Thermal Magnetic

Standards

E11592

Features

"The TEY is a one-inch wide per pole, compact, ""bolt-on"" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. TEY 1 POLE 30 AMP"

Specifications

Amperage Rating:30A
Connection:#14-2/0
Country of Origin:UKN
Harmonized Tariff Code:8536200020
Interrupt Rating:14kA@120/240 Vac / 14kA@240 Vac / 14kA@277 Vac / 65kA@120 Vac
Load Rating:HACR / HID
Number of Poles:1
Trip Range:Non-Interchangeable
Trip Type:LI

Resources

Spec Sheet
