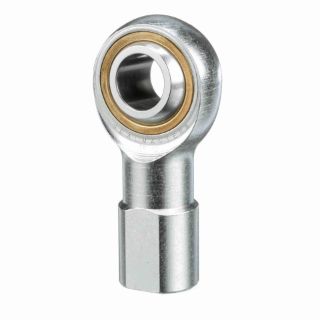

TF 12 SMT

Name: TF 12 SMT
Brand: Regal Rexnord
SKU: TF 12 SMT
Price: 70.31 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1431200000

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$70.31 / EA

Description

Brand Name

Sealmaster®

Type

3-Piece General Purpose Commercial

Description

Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, DELRIN and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.

Sealmaster® Rod End Bearing, 3-Piece General Purpose Commercial, Series: TF Series, 3/4 in Bore Dia, 1-3/4 in Outside Dia, 7/8 in Width, Female UNF, 3/4-16 x 1.719 in, 1-1/8 in L x 1 in W Rod End Size, 2-7/8 in Center Line Length, 11300 lb, Carbon Steel

Application

Aggregate and Cement, Agriculture, Food, HVAC, Metals, Minerals and Mining, Pulp and Paper and Unit Handling Industries

Features

Incorporate a 1-piece race formed around a hardened steel chrome plated ball in a controlled manufacturing process
Flexibility for alternative race materials designed to help solve specific application problems
Protective coated for corrosion resistance
Higher average tensile strength and fatigue life, competition
Wrench flat on female rod ends facilitates assembly
Full catalog thread depth for maximum thread engagement
Reduces pound-out in applications with high frequency oscillation, vibration or shock loading
Improved spherical ball-race conformity for even load distribution
Precision ball-race fit
Less wear than rod ends with 2-piece race designs
Manufactured in steel, aluminum bronze and self lubricating Delrin®
Alloy steel heat treated and chrome plated for corrosion resistance
Better wear resistance properties than carbon steel tin nickel plated balls
Grease lubrication

Specifications

Bore Diameter:	3/4 in
Center Line Length:	2-7/8 in
Country of Origin:	MX
Load Capacity:	11300 lb
Material:	Carbon Steel
Outside Diameter:	1-3/4 in
Rod End Size:	1-1/8 in L x 1 in W
Series:	TF Series
Thread Size:	3/4-16 x 1.719 in
Thread Type:	Female UNF
Width:	7/8 in
