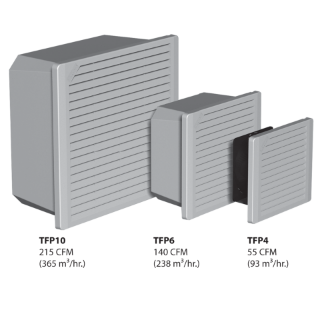

Picture of TFP624 HOF
Actual Product May Vary From Image

TFP624 HOF

6 in Fan Package 24 VDC
Manufacturer: nVent HOFFMAN
Manufacturer part number: TFP624
Availability: Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
3 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$609.00

Product Details

Brand Name

nVent HOFFMAN

Type

Fans and Filter Fans

Description

TFP6 Side-Mount Filter Fan Type 1, 24V 140CFM, Light Gray, Composite

Application

Controls and Drives; Power Distribution

Specifications

Airflow (Imperial):140 ft³/min
Airflow (Metric):238 m³/h
Ambient Temperature:158 Deg F max
Amperage Rating:.88 A
Color:Light Gray
Color Code:RAL 7035
Country of Origin:CN
Depth (Imperial):4.14 in
Depth (Metric):105 mm
Finish:Smooth Matte
Flow Rate:140 CFM max
Height (Imperial):7.8 in
Height (Metric):198 mm
Material:Composite
Max Current:0.88 A
Nominal Voltage:24 V
Size:8 x 9 x 4 in
Voltage DC:24-24 V
Voltage Rating:24 VDC
Weight (Imperial):2.8 lb
Weight (Metric):2.4 kg
Width (Imperial):8.87 in
Width (Metric):225 mm

Resources

Installation
