THED136045WL ABB

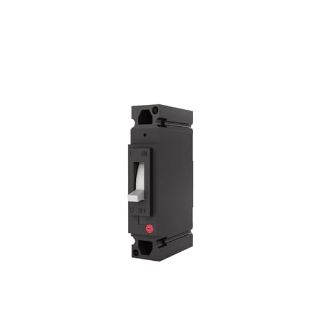

Picture of THED136045WL ABB
Actual Product May Vary From Image

Product Details

Manufacturer:
ABB Electrification
Manufacturer part number:
THED136045WL
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 3 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,832.40 / EA

Description

Description

The E150 product line consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers, and Molded-Case Switches rated up to 150 Amps and 600 Volts AC. Catalog numbers include the complete breaker or switch. The WL catalog number suffix indicates that the devices come with Cu/Al line and load lugs. 3 POLE 600VAC 45A BREAKER

Application

Thermal Magnetic

Standards

E11592

Features

The E150 product line consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers, and Molded-Case Switches rated up to 150 Amps and 600 Volts AC. Catalog numbers include the complete breaker or switch. The WL catalog number suffix indicates that the devices come with Cu/Al line and load lugs. 3 POLE 600VAC 45A BREAKER

Specifications

Amperage Rating:45A
Country of Origin:UKN
Frame:E150
Harmonized Tariff Code:8536200020
Interrupt Rating:10kA@125 Vdc / 10kA@250 Vdc / 25kA@277 Vac / 25kA@480 Vac / 65kA@120 Vac / 65kA@120/240 Vac / 65kA@240 Vac
Load Rating:HACR
Number of Poles:3
Trip Range, Maximum:Non-Interchangeable
Trip Range, Minimum:Non-Interchangeable
Trip Type:LI

Resources

Spec Sheet

Products Specifications

Amperage Rating
45A
Brand Name
GE
Frame
E-Frame
Number of Poles
3
Protection
Thermal Magnetic
Type
Molded Case Circuit Breaker
