Home / TMC2200200A APN

TMC2200200A APN

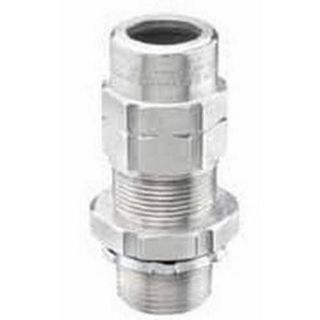

Picture of TMC2200200A APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
TMC2-200200A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$311.76 / EA

Description

Brand Name

Appleton®

Alternate Supplier #

Grainger - 34D549

Description

Appleton® TMC2 Connectors are designed for use with MC/MC-HL, corrugated interlocked aluminum/steel armor or continuously welded armor (TECK or CLx) cables. They are used to provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor.
Appleton® Cable Gland Connector, Series: TMC2, 2 in, Cable Openings: 1.65 to 2 in, JMC/MC/Teck Cable, NPT, 360 deg, Copper Free Aluminum, -60 to 110 deg C, 2.75 in Dia Across Flat x 2.97 in Dia Across Corner x 3.66 in L

Application

For jacketed metal clad, MC/MC-HL, corrugated interlocked aluminum/steel armor and continuously welded armor cable

Standards

CSA 249506, C22.2 File No. 174 Certified | NEC/CEC Class I, Div 2, Groups A, B, C, D, Class I, Zones 1 and 2, AExe II AEx tA IIC, Class I, Zones 1 and 2, Exe II Ex tA IIC, Class II, Div 1 and 2, Groups E, F, G, Class III, Div 1 and 2 | UL 514B/2225

Features

  • Simplified two piece design
  • Integral 'O' ring face seal providing - 4X and IP66
  • Independent sealing and armor clamping
  • Removable cable armor end stop accommodates larger insulated conductors
  • Superior pull-out prevention
  • Compact slim profile
  • Reduced installation time
  • Widest cable acceptance range
  • Re-usable design
  • Additional integral deluge proof seal for protection in extreme offshore and onshore environments
  • Aluminum connectors 1/2 in, 3/4 in and 1 in supplied with zinc plated steel locknut

Specifications

Angle:360 deg
Cable Openings:1.65 to 2 in
Cable Type:JMC/MC/Teck
Connection Type:NPT
Country of Origin:IN
Dimensions:2.75 in Dia Across Flat x 2.97 in Dia Across Corner x 3.66 in L
Material:Copper Free Aluminum
Series:TMC2
Temperature Rating:-60 to 110 deg C
Trade Size:2 in
